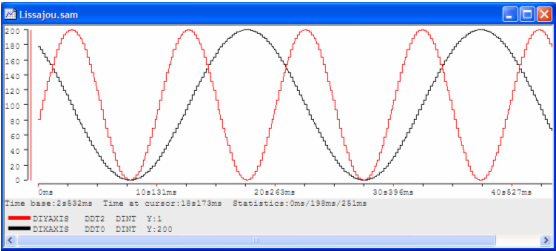

XY Mode

This function is enabled if two channels are visible. After recording has stopped; the XY animation feature redraws all points step by step.

Possible data types:

• INT

• DINT

• REAL

• WORD

• DWORD

• TIME

Normal Mode

XY Mode

Swap XY

XY Animate
