PANATERM – Fit-gain tuning

Before you start

Before operating this product, read the safety instructions in the related Operating Instructions.

This product is for industrial use only.

Electrical connections must be made by qualified electrical personnel.

About this document

Step-by-step instructions will guide you through a fit-gain tuning procedure for a MINAS servo driver. The auto-tuning is performed with the PANATERM configuration software.

Available software

The following software is available free of charge.

PANATERM 6

This link will take you to the Panasonic Industry Co., Ltd. Web site.

Functional overview

Auto-tuning is required for all applications to adjust the servo motor to the specific mechanical conditions. You can choose one of the following auto-tuning functions:

Fit-gain tuning
Real-time auto-gain tuning

This Quick Start Guide explains how to perform fit-gain tuning.

While the fit-gain tuning function guides you through an automatic fine-tuning process, real-time auto-gain tuning mainly adjusts the rigidity of the machine. If you are using a MINAS A6 servo driver, first try fit-gain tuning. If fit-gain tuning was not successful, perform real-time auto-gain tuning. Both methods can be executed using PANATERM.

If possible, you should perform real-time auto gain-tuning on the machine with the servo motor and the mechanical loads connected and with the actual movements.

Usually, auto-tuning has the following goals:

Reduce the settling time to reduce cycle times.
Reduce mechanical vibration to increase the life time of the machine.
Reduce overshoot and undershoot to reach the target position within the allowed hysteresis.
Decrease the response time to reach the target position faster.

Overshoot, undershoot, and settling time of the position value

Example

A MINAS A6SF servo driver is connected to a servo motor, which is coupled to a belt. The control mode is position control. A continuous movement within the mechanical limits, no mechanical vibration, no overshoot or undershoot, and a reduced settling time are required.

Continuous movement between two mechanical limits

Wiring

Recommendations for wiring

It is the customer's responsibility to apply the countermeasures that they consider necessary to comply with current regulations on wiring, safety and reducing EMI.

Do not forget to meet the specifications indicated in the hardware manual for each of the devices being wired. If any specifications in the manual conflict with the information in this document, the manufacturer's manual takes preference.

For detailed information on reducing EMI, please refer to Recommendations for EMC-compliant wiring of servo drivers and motors.

Connectors of the servo driver

XA connector (main power connector)

Connect the power supply cable to the XA connector. For a 1-phase power supply of 230V, connect a 2-wire cable to the servo driver as illustrated. The L2 pin is not used in 1-phase mode.

Wiring of the XA connector for a power supply of 230V

XB connector (motor connector)

Connect the motor cable to the XB connector. The wires are labeled with the letters U, V, and W. Do not change the sequence of the motor phases, e.g. by connecting V to W.

Wiring of the XB connector for the motor power supply

X6 connector (encoder connector)

Connect the encoder cable to the X6 connector.

Wiring of the X6 connector for the encoder connection

X1 connector (USB connector for PC connection)

The servo driver is configured using the PANATERM configuration software . Use a commercially available USB A to mini-B cable to connect the PC to the servo driver.

Connector X1 for PC connection

Perform fit-gain tuning

Use the PANATERM configuration software to perform auto-tuning.

Connect your PC to the X1 connector and turn on the servo driver.
Start the PANATERM configuration software.
The software automatically detects the type of servo driver connected.
Select OK and confirm the connected series by selecting your type of servo driver.
Select the Fit gain tab.
1. (1) Fit gain tab

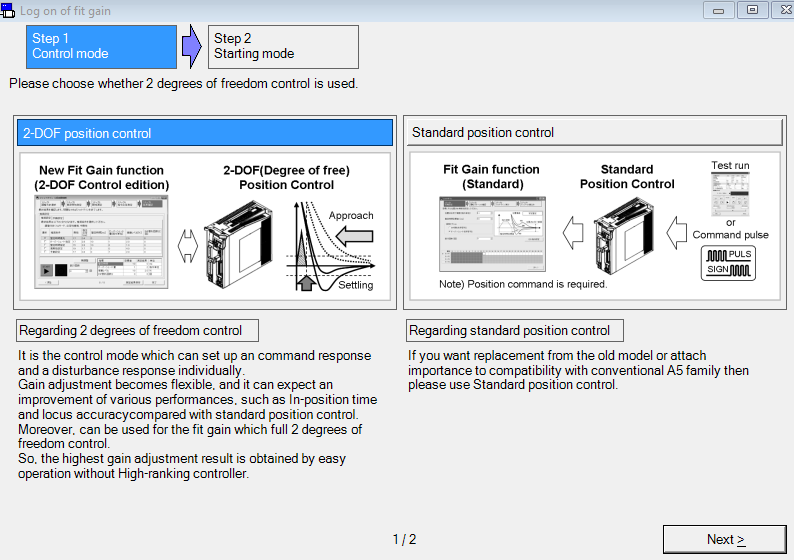

Select 2-DOF position control and select Next.

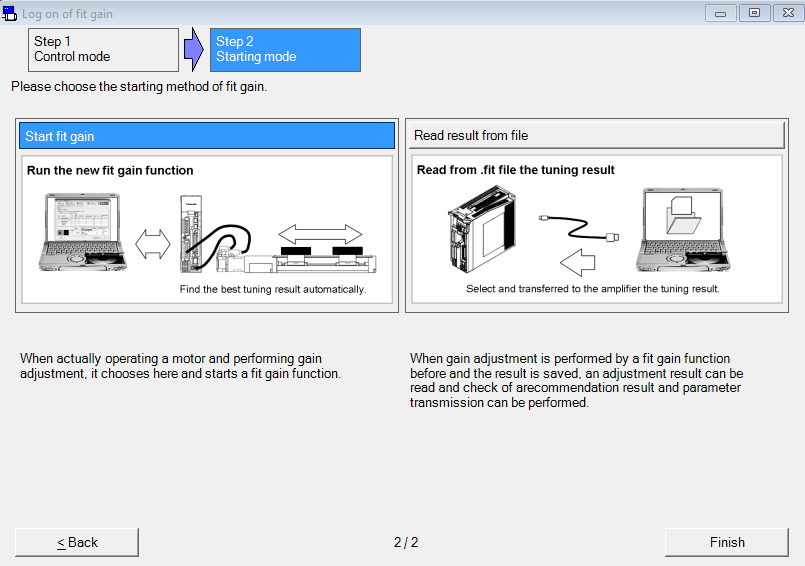

Select Start fit gain and select Finish.

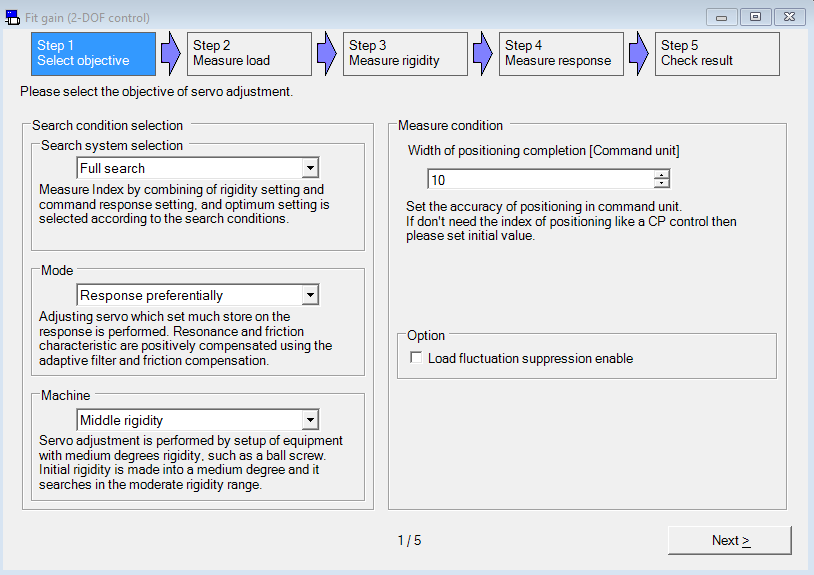

In Step 1 of the autotuning procedure, select one of the following modes: Response preferentially, Balanced, or Stability preferentially. Then select Next.
In Step 2, select the SRV ON button. Observe the safety note which is displayed, and confirm with OK.

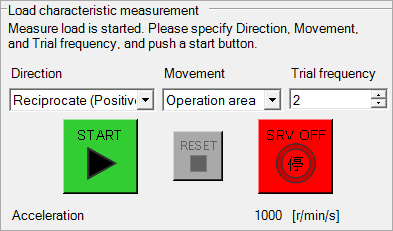

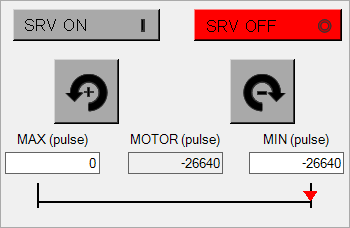

Use the JOG buttons to specify a short movement amount for the motor.
In the Trial frequency list box, select option 2 to reduce the time for fit-gain tuning.
In the Movement list box, select Operation area.
Select the green START button to measure the actual load. When the measurement is finished, confirm the measurement results displayed with OK. Then select Next.

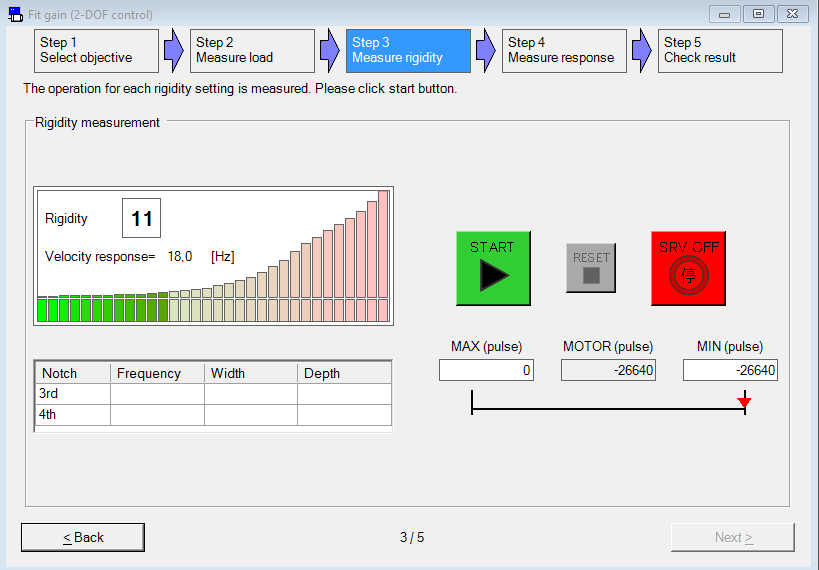

In Step 3, select the green START button to measure the optimum rigidity (or stiffness) parameter for the load.

When this step is performed, the load may oscillate shortly. To prevent damage, make sure you can stop the movement at any time by turning off the servo function.

When the measurement is completed, confirm the message displayed and select Next.

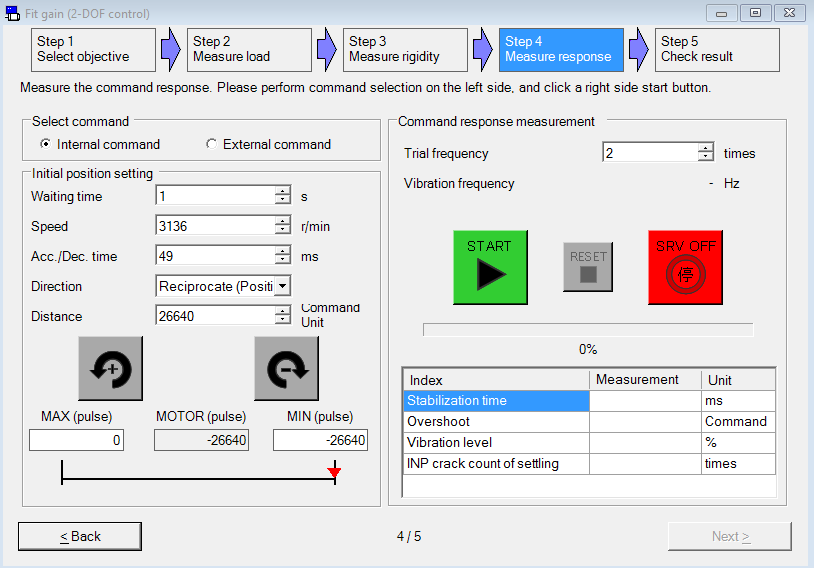

In Step 4, select the green START button to measure the command response.

When the measurement is completed, confirm the message displayed and select Next.

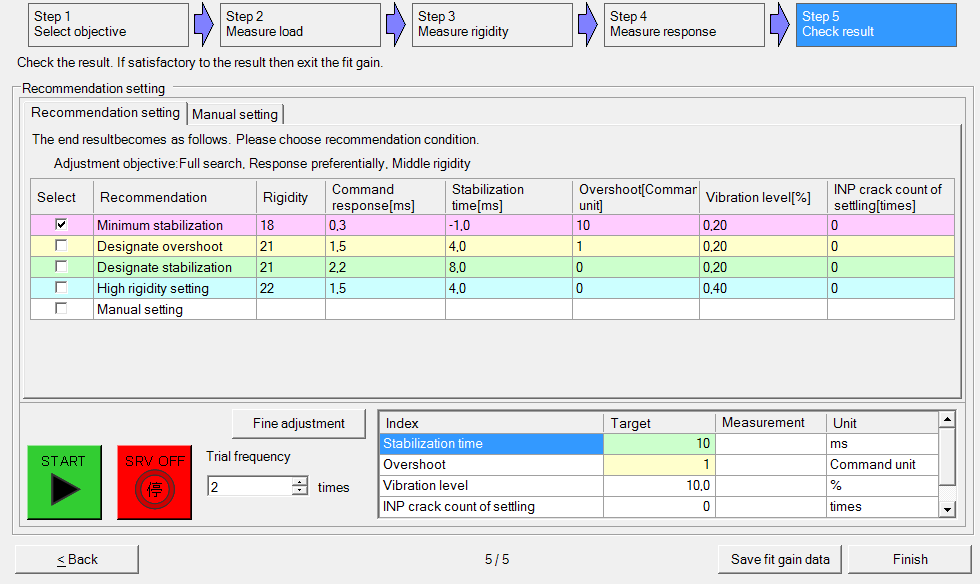

In Step 5, four different tuning results are displayed. The recommended result has a check mark. Select Save fit gain data to save the tuning results in a file.
Select Finish.

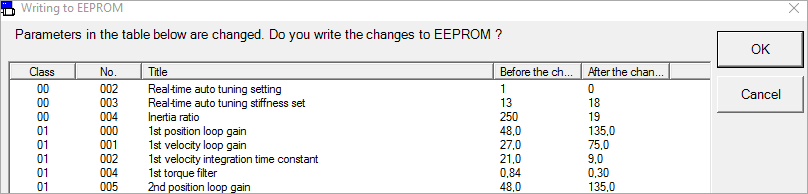

In the Writing to EEPROM dialog, select OK to save the parameters in the MINAS A6 servo driver.
Turn the power supply of the MINAS A6 servo driver off and on again to apply the settings.
The system is now ready to perform the desired positioning movements.
