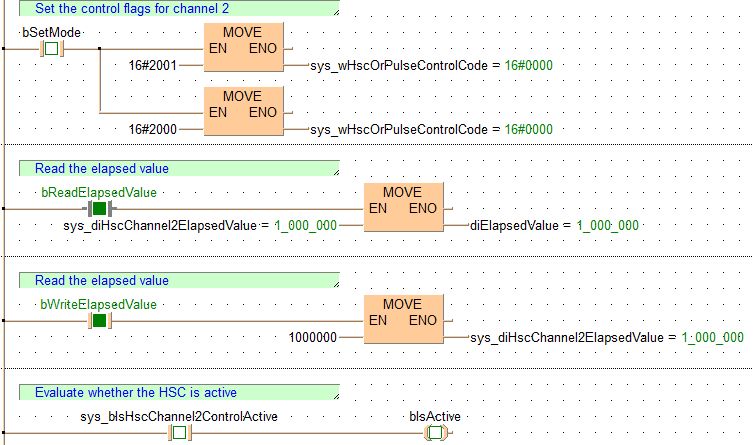

In this example the system variables of the high-speed counter are called in a ladder diagram. The numbers of data registers differ for the PLC type used.
System variable |
FP0 (2,7k, 5k) |
FP0 (10k) |
FP-S |
FP-X |
|---|---|---|---|---|
sys_wHscOrPulseControlCode |
DT9052 |
DT90052 |
DT90052 |
DT90052 |
sys_diHscChannel2ElapsedValue |
DT9104 |
DT90104 |
DT90200 |
DT90308 |
sys_bIsHscChannel2ControlActive |
R903C |
R903C |
R903C |
R9112 |

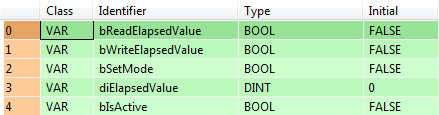

All input and output variables used for programming this function have been declared in the POU header.
